Description

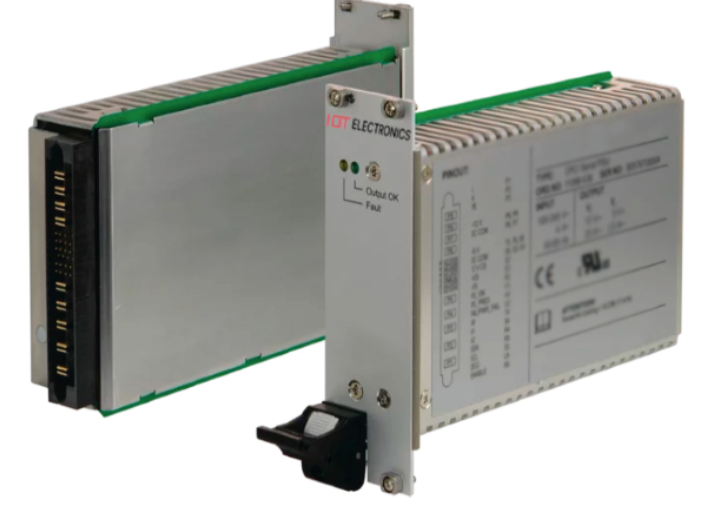

IDC300S – DC/DC secondary power supply
- Constructive: CompactPCI Power Interface compliant
- Maximum output power: 312 W;
- Input voltage range: 16.6.160 V;
- Active PFC (Power Factor Correction) meets IEC1000-3-2 Harmonic Correction
- Internal OR-ing Diodes for N + 1 redundancy
- Output voltage: +12V 26A, +5V 2A.
- Supports remote ON/OFF
- Supports power failure signal & degradation signal
Technical Data
Model Name
• IDC300S
• PICMG® Standards: PICMG CPCI.S-0®
• Form Factor: 3U cPCI (100 x 160mm), 2-slot (8HP) wide
Input Voltage
• Input Voltage: 16.6 – 160 VDC
• Input Frequency: DC
• Input Current: Peak 32.6A @ 24 VDC
• Inrush Current: N/A
• Power Factor (PFC, only for AC): Correction Typical 0.95-0.97
Meets Harmonic Correction IEC1000-3-2
Output Voltage
• Output Voltage/Current
– 12V Typ. 26.0A,
– 5V: Typ. 2.0A.
Max load is the continuous operating load of each rail individually. The max load of each rail cannot be drawn from all outputs simultaneously.
- Output Wattage: Typical 312W continuous
- Line Regulation: Typical 0.1%
- Load Regulation: Typical ± 1-2%
- Available at 5V and +12V outputs and current sharing
- N+1 Redundancy: Equipped with internal OR-ing diodes at all outputs for N+1 redundancy operation
Power Failure Signal
- Available at [FAL#] pin
Power Degradation Signal
- Available at [DEG#] pin
