Description

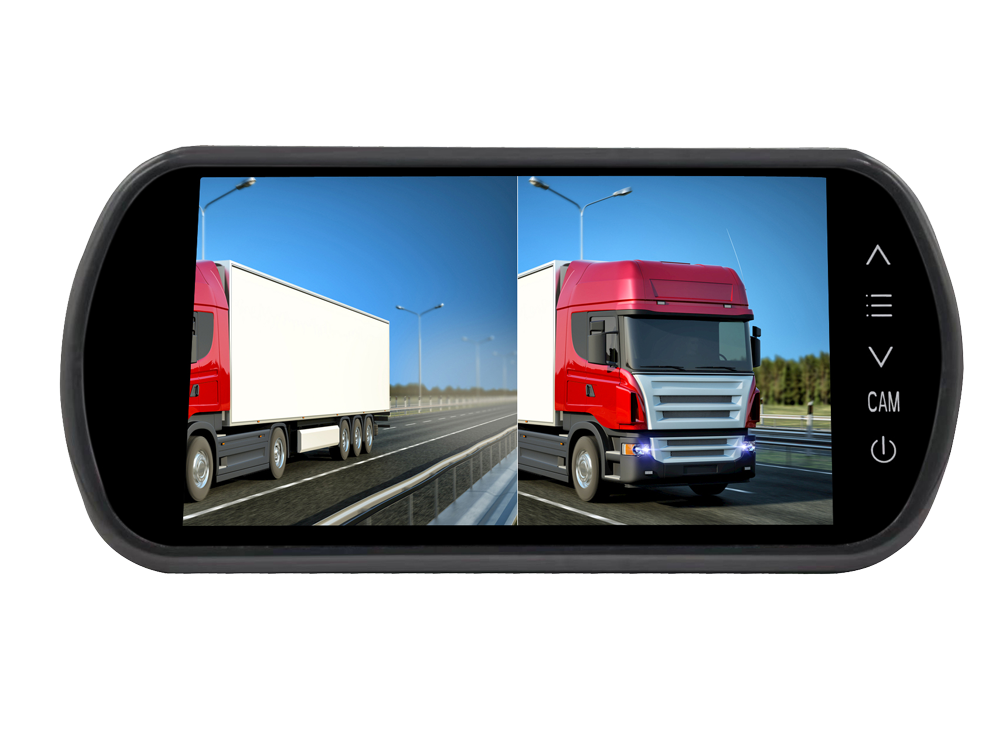

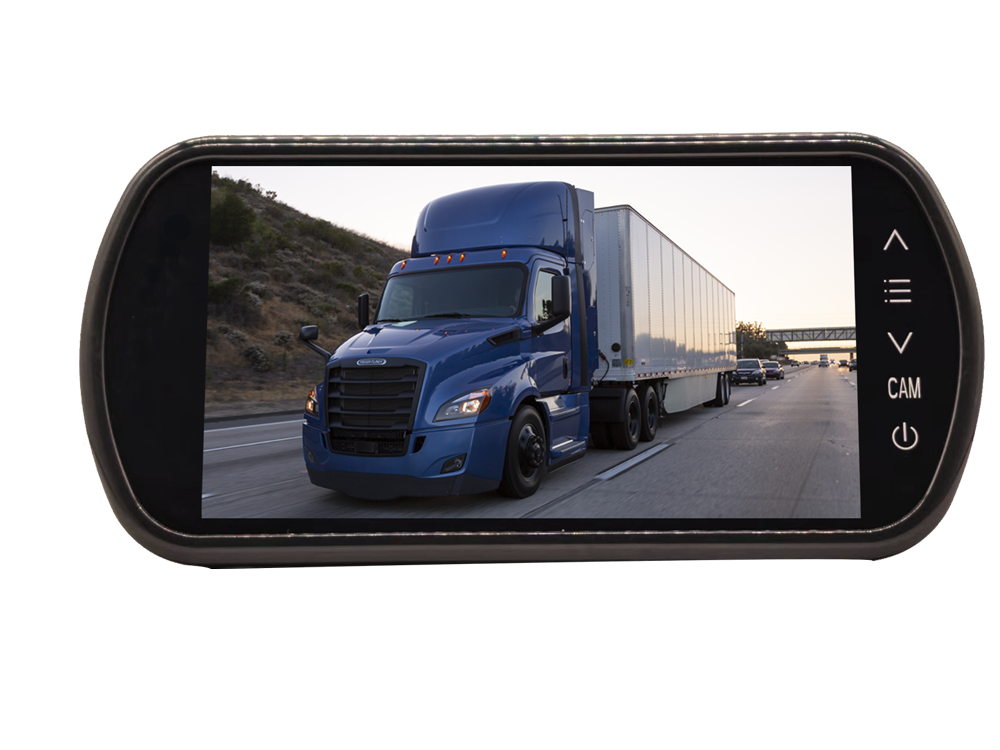

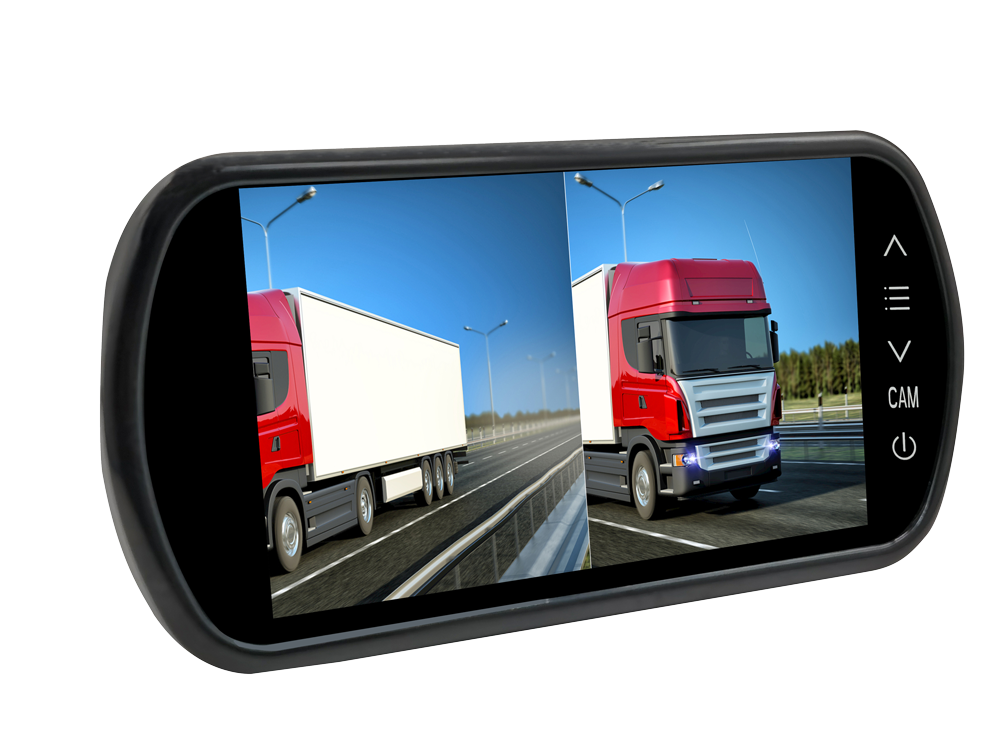

RV MIRROR MONITOR
7 ” Ruggedized design for commercial fleet use
1024 * 600TVL Resolution , IPS Screen , Brightness : 500cd / m²
2 – CH 4PIN Aviation inputs , 1080P / 720P / CVBS Camera compatible
Viewing Angle : U : 180 ° , D : 180 ° , L : 180 ° , R : 180 ° Contrast ratio : 500 : 1
Built – in Light – Sensitive Function , Auto adjust Screen Light on Day / Night
TVS High / Low Voltage & Reverse Protection , Anti – shock pulse 60V 3A

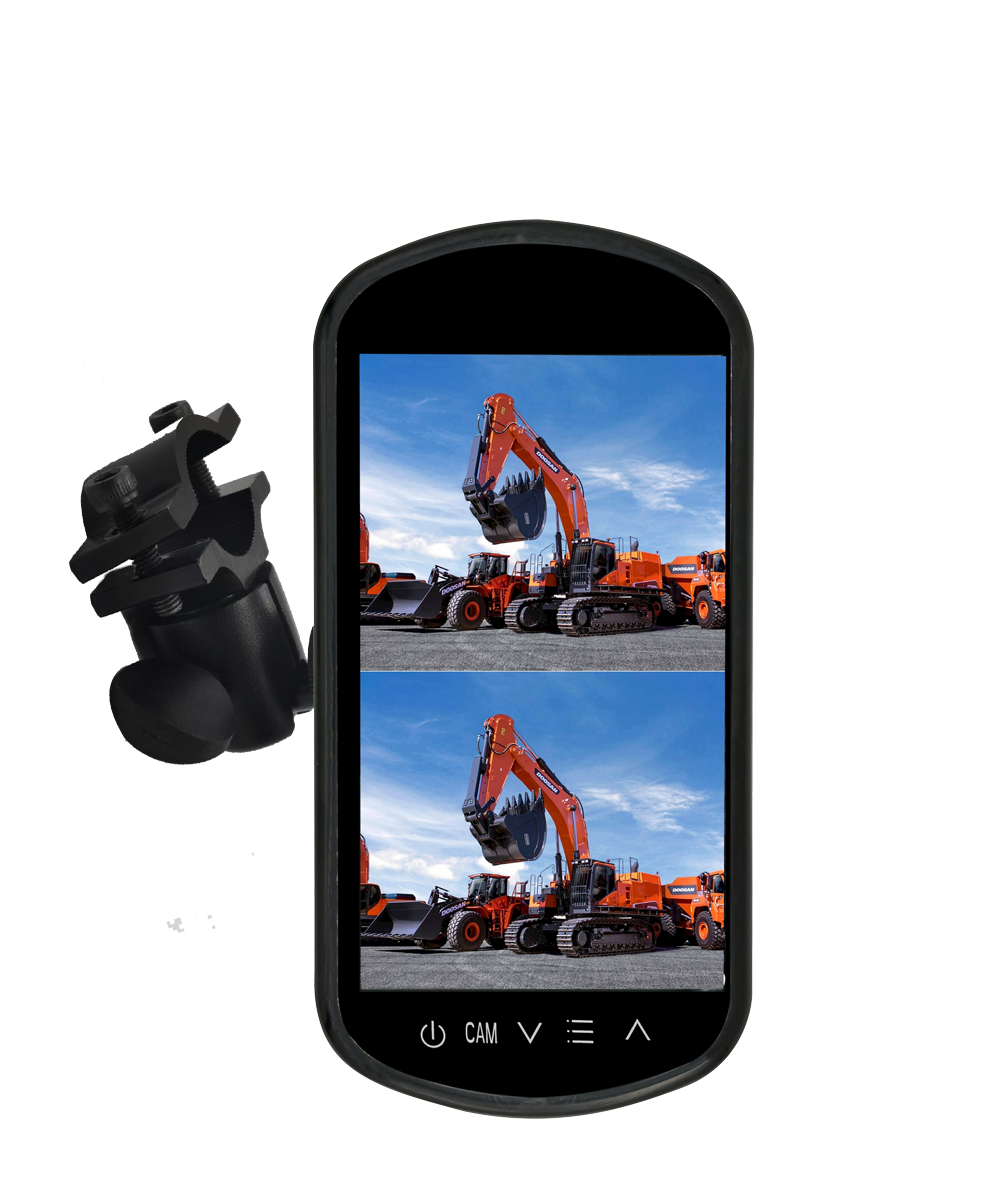

Suitable Kinds of Installation Bracket for Vertical / Horizontal installation
PAL / NTSC Compatible , 4G Anti – Vibration Class
Specification
| Type | RV Mirror Split Screen Monitor |
| TV System | PAL / NTSC |
| Resolution | 1024 * RGB * 600 |
| Screen Size | 7 “ |
| Screen Blacklight | Led Lights |
| Brightness | 500cd / m2 |
| Viewing Angle | U : 180 ° , D : 180 ° , L : 180 ° , R : 180 ° |
| Contrast Ratio | 500 : 1 |
| Video Input | 2 – CH |
| Video Resolution | 1080P / 720P / CVBS Auto Adjust |
| I / O Trigger | 2 – CH ( V2 > V1 ) |
| Power Supply | DC8-36V |
| Operating Condition | -30 ° C- + 70 ° C |
| Gross Weight | 0.6KG |
 |
|
